Greartisan 24V 40RPM DC Gear Motor: A Solid Option for Low-Speed, High-Torque DIY Projects

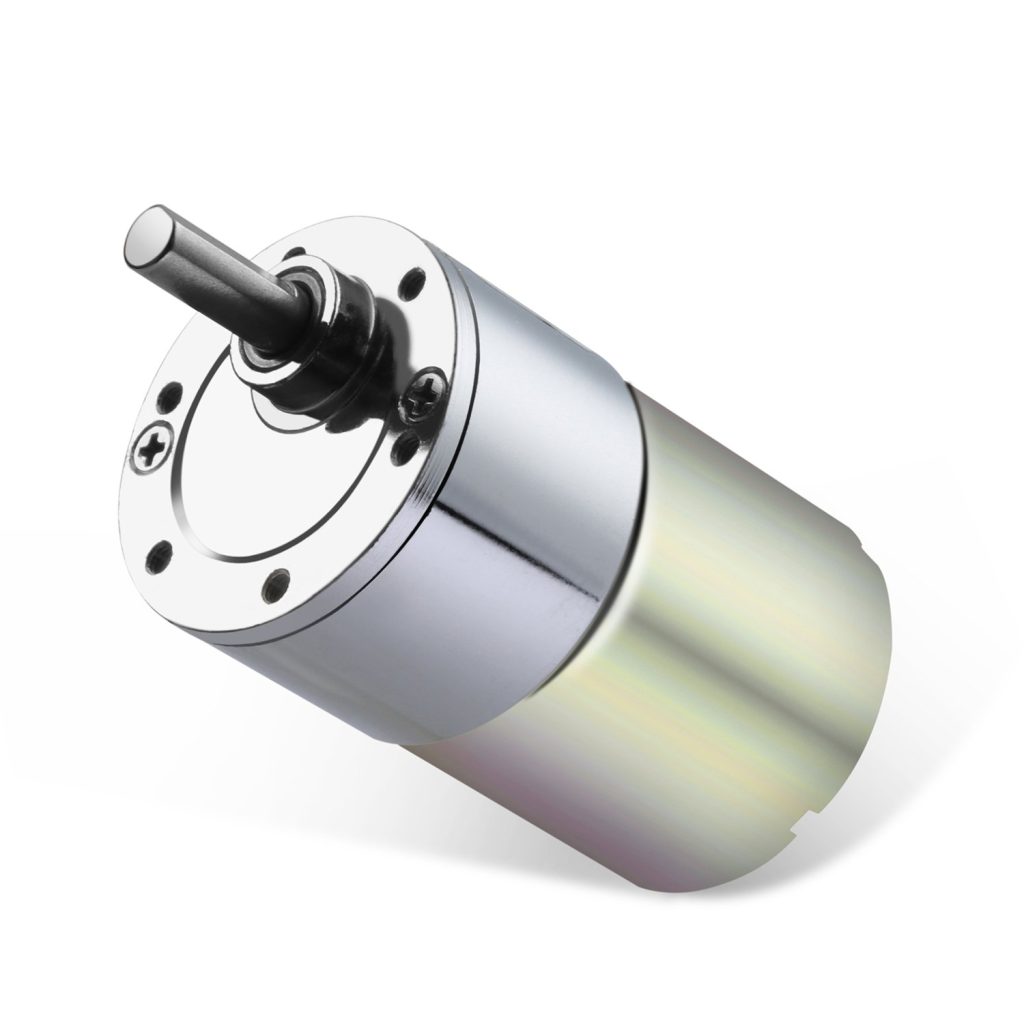

The Greartisan DC 24V 40RPM gear motor is a compact unit aimed at hobbyists and makers who need controlled, low-speed rotation with decent torque. It falls into the category of micro speed reduction geared motors, and its eccentric output shaft and 37mm diameter gearbox make it a specific tool for certain builds—not a universal solution.
In real-world use, this motor is often found in small robotics, automated gates, conveyor belts, or rotating displays. The 40 RPM speed is deliberate: it’s not for fast motion but for applications where precision and force matter more than velocity. For instance, if you’re building a small turntable that needs to rotate a few kilograms of weight slowly, or a camera panning mechanism that must move smoothly without jerking, this motor can handle the job. The 24V DC input is common for many power supplies, so integrating it into an existing system is straightforward.
Key functional features include the eccentric output shaft, which is less common than concentric designs. This means the shaft is offset from the center of the gearbox, which can be an advantage in tight spaces or when you need to connect it to a linkage without a direct inline coupling. The gearbox is all-metal, which adds durability compared to plastic-geared alternatives. The motor itself is brushless? Actually, it’s a brushed DC motor, so expect some maintenance over time—brushes wear out after hundreds of hours of use. The rated torque is around 10 kg·cm, which is respectable for a motor of this size, but don’t expect it to lift heavy loads without gearing down further.
That said, there are trade-offs. One limitation is the lack of a built-in encoder or hall sensor, so precise speed or position control requires an external feedback system. If you need closed-loop control, you’ll need to add your own encoder. Another issue is the noise level: at 40 RPM, it’s fairly quiet, but under load, the gearbox can produce a noticeable whine. Also, the eccentric shaft can complicate mounting—you may need custom brackets or adapters, as standard shaft couplers often assume concentric alignment.
When compared to a similar product category, like a NEMA 17 stepper motor with a planetary gearbox, this Greartisan motor has a different profile. Stepper motors offer precise position control without feedback, but they can be noisier at low speeds and require a driver board. The Greartisan is simpler: just apply DC voltage and it spins. It’s better for continuous rotation tasks, while steppers excel at incremental moves. For example, a stepper might be overkill for a slow-turning sign, but this gear motor would be a natural fit.
Who is this motor for? It suits hobbyists working on medium-torque, low-RPM projects who don’t need high precision or feedback. Think of it as a workhorse for proof-of-concept builds or permanent installations where simplicity and cost matter. It’s also a good choice for educators demonstrating gear reduction principles. However, it is not suitable for applications requiring high speed, silent operation, or precise positioning without external sensors. If you’re building a CNC machine or a 3D printer, look elsewhere—you need steppers or servos. Also, avoid it if your project demands long-term reliability without maintenance; brushed motors will eventually need brush replacement.
Overall, the Greartisan DC 24V 40RPM gear motor delivers on its basic promise: reliable low-speed torque for a reasonable price. It’s not flashy, but it gets the job done within its limitations. Just plan for the eccentric shaft and think about how you’ll mount it before you buy.
